Design & Calculations

Design

The Bexon and Gantrail teams have experience and capabilities in the following areas:

Mining – Stackers and Reclaimers
Mining – Shiploaders, trippers and shuttles
Bulk Ports – Shiploaders and Ship unloaders
Container Ports – Ship to shore, long travel and cross travel cranes, ASC (Automatic Stacking Cranes)
Ship lift and Shipyards, cranes and cross over cranes
Steelworks – Gantry Cranes, ground mounted cranes
Smelters – Gantry Cranes, ground mounted cranes
Timber Mill – Gantry Cranes and Kilns
High Bay Warehousing
Water Treatment – Gantry Cranes
Desalination plants – Gantry Cranes

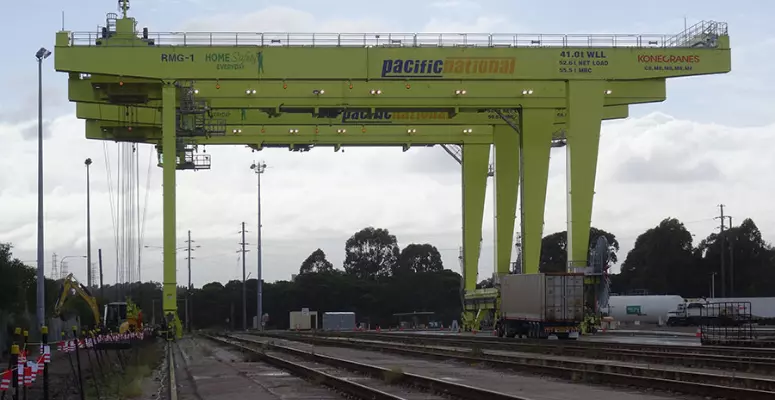

Intermodal Terminals– Cranes
Road and Tunnel Construction – Temporary rail-mounted cranes
Stadiums – retractable roof cranes
Oil & Gas – Gantry cranes

We offer extensive support at the design stage and beyond, to ensure your specifications are met.

Bexon have a large selection of general arrangement drawings from the Gantrail repository, to draw upon. We can also offer customised or modified drawings to meet your specific requirements or restrictions.

Calculations

Based on your requirements, associated design drawings and specific load data, Bexon can provide calculations for the design and ensure specifications are correct before proceeding.

The calculations will specifically select the most suitable:

Rail profile
Gantrail clip and spacing
Resilient pad
Soleplate
Bolt specification

Our calculations can be a review of your design to evaluate suitability, or for a new structure. Through our calculations we will be able to assess and offer alternatives that are more economical if relevant.

Further guidance can be provided on:

Diameter and length of holding down bolts
Hold down bolt embedment length for horizontal and vertical forces
Choice of soleplate style, length, width and thickness
Soleplate levelling and bolting
Requirements and best practice for clip spacing
Coatings and corrosion protection
